This intake fits the PPM or JC Specialty Billet Animal Head
Includes Mounting Hardware
1 - 90° Elbow fitting 1- SHCS 1/4-20 x 7/8'' 1- SHCS 1/4-20 x 3/4''
*** This item uses large 33mm mikuni boot ***
33MM Mikuni Rubber Carb Mount
33MM Small carb flange 2.322 center to center
33MM Large carb flange 2.925 center to center

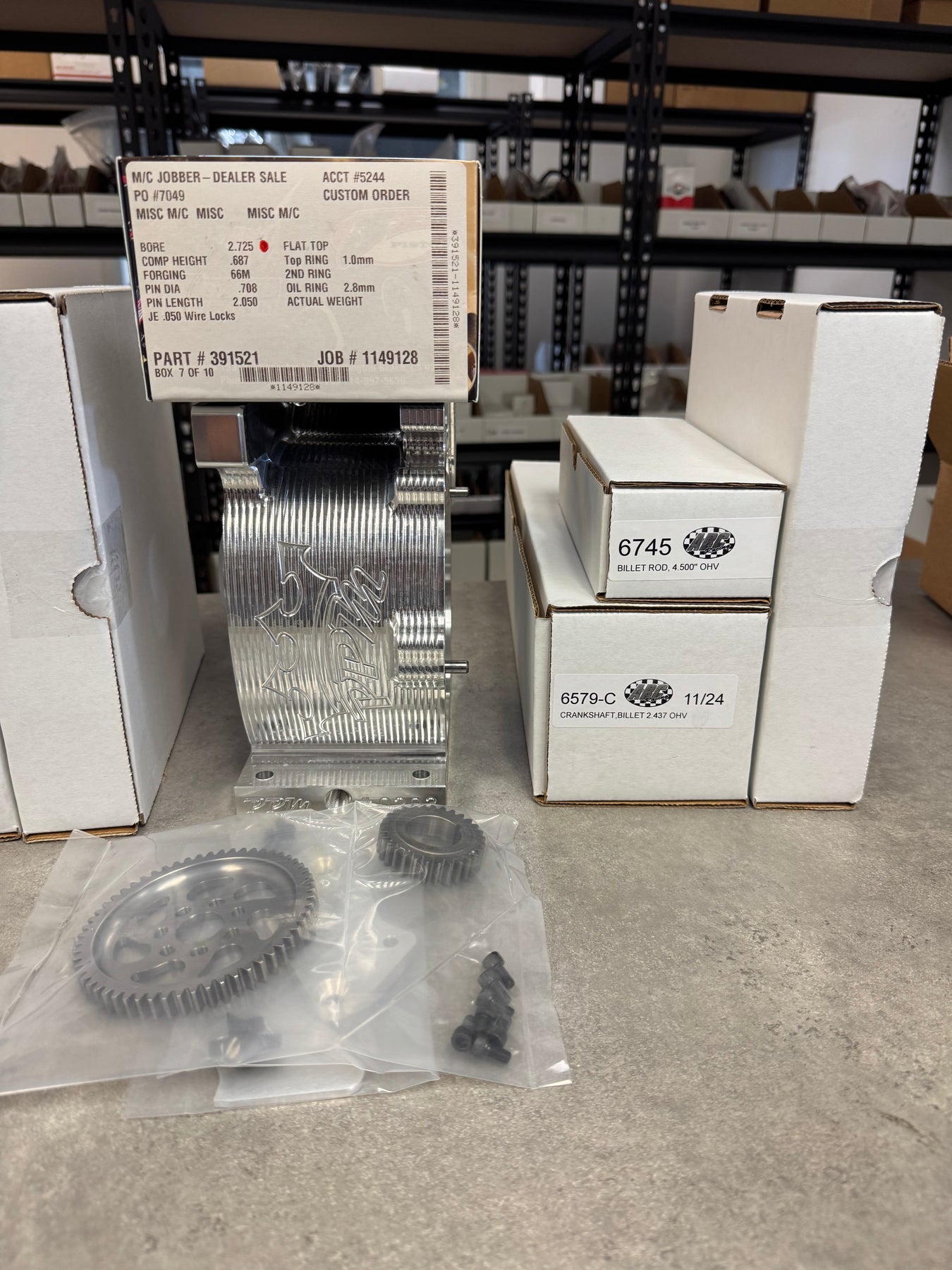

6579-C ARC Billet Crankshaft 2.437 Stroke 1.180 main
ARC Racing Billet Crankshaft 2.437 stroke 1.180 main journal made for PPM +1.00'' deck Billet Animal. Made from hardened 4340 Chromoly Steel to the quality standards you have come to expect from ARC Racing. True 1/8 radius crank pin(1.180 diameter) and 3/4" PTO shaft. This crank uses the same bearings on both sides of the crankshaft.
4.500" Animal "Stroker" Rodwithbearing inserts. ARC's stroker rod is designed to give you the most rod length you can get with the PPM Billet Animal +1.00'' deck block with an ARC 6579-C Billet Crankshaft. Uses the PPM designed JE style pistons without cutting off the top. This piston uses .708" wrist pin which is a much more durable. A longer rod lessens the rod angle at half-stroke, which decreases stress on the rod and piston to wall pressure. This provides considerable improvement in durability and performance over the stock setup. Bolts and bearings are included.
Rod bolt torque: 170 in/lbs lubricated
Adjustable Slide Mount
*** ANGLE MOUNT NOT INCLUDED ***
Animal Head Stud Kit
This kit includes 4 studs - Nuts and washers
5/16-18 x 1/2'' on one end 5/16-24 x 3/4'' opposite end 2.700'' overall length
BILLET ANIMAL VALVE COVER
PPM BILLET VALVE COVER
Valve cover has (2) 3/4-10 holes and (1) 1/4-18 pipe hole
BILLET HEAD EXHAUST PIPE
FLARED EXHAUST PIPE
This pipe fits the PPM or JC Specialty Billet Animal Head
How do you want your BILLET HEAD? We have options for you!
Looking to do your own thing? Order it BARE NO CHAMBER - without combustion chamber or valve locations to build your perfect head.
Are you looking to install your own seats and guides? Order it BARE - just choose your plug size. You can install your seats and guides and machine it your way.
Looking for PPM Performance? Order it COMPLETE - this comes with Stainless Valves - seats - guides - springs - keepers and Ti retainers installed ready to bolt on.
1.250 Intake Valve - 1.125 Exhaust Valve
Bore & Hone
Bore & Hone for proper piston clearnance
Breather Fittings - Valve Cover Fittings - Side Cover Fittings
3/4-10 Thread on one end pick your -AN size for opposite end
FHS Lighting Modified Oil, Quart
INTAKE SPACER FOR BILLET HEAD
Spacer to adapt tilly carbs
Sold each NOT as pairs
Includes piston - wrist pin - rings and clips
This piston has a .687 compression height and is fitted for a .708'' wrist pin
PPM 33MM Mikuni Billet Float Bowl
PPM 33MM Billet Float Bowl
Includes drain plug and mounting hardware
This float bowl offers easy twist out drain plug for quick access to the main jet.
*** This float bowl does not utilize the stock accelerator pump - accelerator shaft will need to be removed ***
PPM 33MM Mikuni Flange
Weldable Flange - Weld your own intake
Small - 1.180'' ID .475'' thickness
Large - 1.550'' ID .475'' thickness
PPM 4th Bearing Support
